Transit Plate Registration Wizard - Review Cash Receipt Information Step

Use the Review Cash Receipt Information Step to review and confirm the payment amount tendered and any change due. After entering all appropriate information and clicking Finish the transit plate information is validated as the final step in the process. The table following the panel example describes the data entry for this step in the Transit Plate Registration Wizard.

Tip: For general information about using wizards, see the Wizard - Introduction.

Directions:

To display the Review Cash Receipt Information Step in the Data Entry Panel:

1. Open Transit Plate Registration Wizard.

2. To navigate to the Review Cash Receipt Information step, click Next until it displays in the Data Entry Panel.

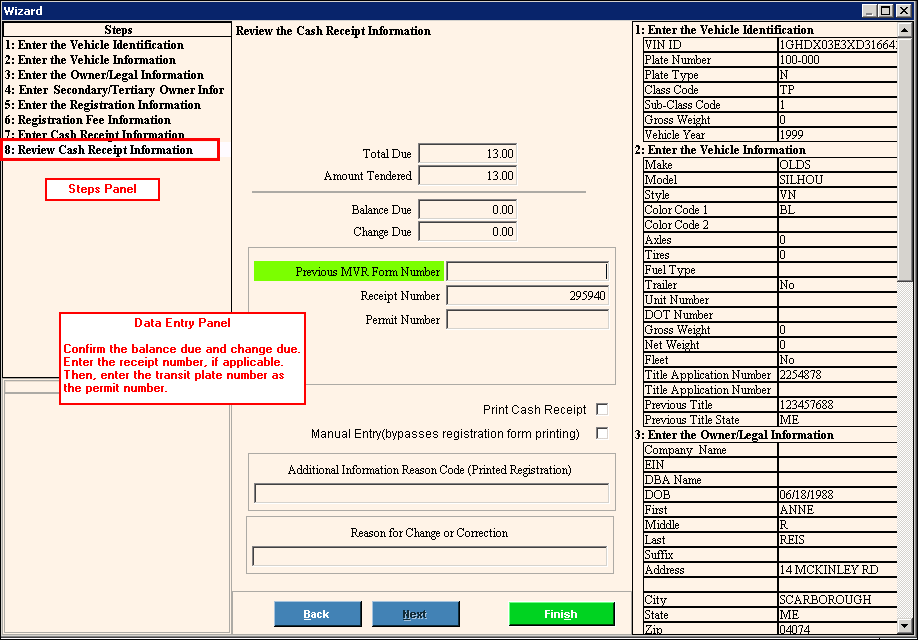

Data Entry Panel - Review Cash Receipt Information Step Example:

Data Entry Panel - Review Cash Receipt Information Step Prompts Tip: To see more information about a field, click the hyperlink for that field name.
Total Due	Displays for your reference the total registration amount due.
Amount Tendered	Displays for your reference the amount tendered by the person registering the vehicle. Amount Tendered = Check Amount 1 + Check Amount 2 + Cash Received
Balance Due	Note: This field is reserved for future use.
Change Due	Displays the calculated change due to the person registering the vehicle. Change Due = Amount Tendered - Total Due
Previous MVR Form Number	Enter the previous MVR form number, if applicable.
Registration Receipt Number	Displays the pre-printed receipt number. (8.0 numeric) Note: Verify that the registration receipt number is correct.
Receipt Number	Enter the receipt number if you provide a receipt to the registrant to acknowledge their payment. (7.0 numeric)
Permit Number	Enter the Transit Plate number as the permit number. Required
Print Cash Receipt	To print a cash receipt for the transaction, click to select the box. To omit printing a cash receipt for the transaction, leave this box blank.
Manual Entry	If you have already manually typed a MVR-3 registration form and are simply entering the information to the system, click to select this box. If you did not manually type the registration form, leave this box blank.
Additional Information Reason Code	Enter any additional reason codes that you want to print on the MVR-3 form as an informational reason code. (1 character)
Reason for Change or Correction	If any information on the registration is changed during the transit plate process, enter the reason for the changes. The Reason for Change or Correction prompt can be used as a Reason code 2, Print Priority code 36 or as a simple message. At a later step you can specify the type of reason it is, which determines how it will print. Reason Code 2 – Free type reason. The text will print horizontally on the form. Print Priority Code 36 – Manual type Priority code. The text will print vertically on the registration form. Simple Message - Free type message. The text prints on reports for the state, but does not print on the registration form.
	To display the previous step, click Back. Keyboard shortcut: [ALT + b]
	To validate and save the data for all of the wizard steps, click Finish. The wizard window closes when the save is complete. Keyboard shortcut: [ALT + s] Important: After clicking Finish, the registration information is validated and saved.
	To close the wizard without validating or saving the data, click Close.

Printing Registration Form Step

After clicking Finish, if the receipt printer is available for printing, the following window displays:

Note: If the printer is not available for printing because another clerk is printing a registration form, you will get a printer busy message. For more information, see Printer Busy Step.

Data Entry Panel - Review Cash Receipt Information Step - Verify Registration Receipt Number and Printing Prompts Tip: To see more information about a field, click the hyperlink for that field name.
Receipt Number	Check the registration receipt form number next in line on the printer you are printing to. If the number matches the number listed in the Verify Registration Receipt Number window, then click OK to continue. Or, if the registration receipt number does not match, then enter the correct number of the registration receipt waiting in the printer.
	To start the receipt printing if the receipt number is correct, click OK.
	Or, to cancel the printing process, click Cancel.
Type of Reason Step If a reason for change was entered during the Review Cash Receipts Information Step, the Reason code/Print Priority Code prompt displays after clicking OK to verify the Registration receipt number. This prompt allows the user to specify if the reason is a Print Priority code 36 or a Reason code 2, which determines how the information will print on the form. Note: This prompt only displays if a reason is entered during the Review Cash Receipts Information Step.
Print Additional Reason Code as Print Priority?	To print the Reason code as a Print Priority code, click Yes . This will print the reason as part of a vertical list of codes on the MVR-3E form. To indicate that this is a Reason code, click No . The Reason codes will print horizontally on the registration form. Each code is separated by a comma and the text will wrap to the next line, if necessary.
Server Process Status	A window similar to below displays while the MVR-3 form prints.
	To close the Status window when the progress bar shows 100%, click Close .
	Important: You must close the process status window when the registration receipt is printed. This allows the printer to be available for other print jobs.

Printer Busy Step

If the printer is busy, the following message displays to alert you:

Data Entry Panel - Review Cash Receipt Information Step - Printer Busy Prompts Tip: To see more information about a field, click the hyperlink for that field name.
This printer has another registration form print in progress	This means that you will have to wait for a moment while another form finishes printing on your assigned printer, before the printer is available for your print job. This ensures that you have the matching registration receipt number when your registration form prints.
	To continue to wait for the printer, click OK. Important: After clicking OK, wait until the next window displays.
	To cancel the registration form printing, click Cancel.
	Important: If you click Cancel, the wizard stops trying to print your registration form and your transaction is not finished.
